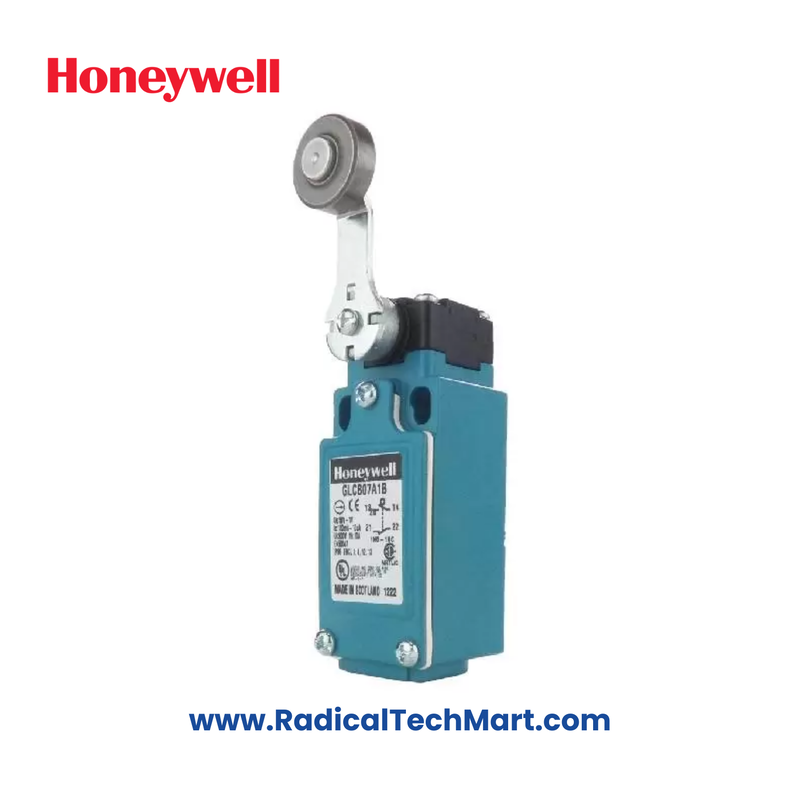

GLCB07A1B-3 Honeywell Limit Switch

Product Description

• Brand: Honeywell
• Model No.: GLCB07A1B-3

Conformance to Standards

The product conforms to the following standards:

• CE
• EN 50047
• IEC/EN 60947-5-1
• CSA C22.2 #14
• UL 508
• CCC1 GB14048.5
• EN 45545-2 (GLC/GLE)
• EN 61373

Housing Material

• GLC Series and GLE Series: Electrostatic epoxy coated zinc
• GLD Series: High-strength glass-reinforced thermoplastic

Actuators

Available actuators include:

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

Termination Options

• 0.5-14 NPT
• PG 13.5
• 20 mm
• PF 1/2
• Deutsch style 4-pin connector
• Other cable/connector options available (contact Honeywell Representative)

Contact Options

• GLC metal housing and GLD plastic housing:
  • 1NC/1NO
  • 2NC
  • 2NO
• GLE metal housing:
  • 1NC/1NO
  • 2NC
  • 2NO
  • 2NC/2NO

Contact Type

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow action

Contact Material

• Silver (standard)
• Gold plated (for low-energy applications)

Electrical Ratings

• Thermal current (Ith): 10 A
• Rated insulation voltage (Ui): 300 V
• Rated impulse voltage: 2.5 kV
